A few days later, the princess of Scorpion's family will start school, and she will be asked to help with a host computer to check the information for children. The blind man spoke, this matter can not be vague, of course, there is exactly a set of G3220 + B85 platform to hand down, the primary school students Internet access is not high, this is the most appropriate, by the way can also give me clear inventory, killing two birds with one stone.
Configuration:
CPU: INTEL G3220 (existing)
Heat dissipation: Jiuzhou Fengshen Icy mini 45.9 yuan
Mainboard: MSI B85I ITX (existing)
Memory: Kingston 8G 1600 (existing)
Hard Disk: Kingston UV400 240G 419 yuan
Power Supply: Xingu 250 (supplied)
Chassis: Xin Gu Bai Meng Meng 295 yuan
Unpacking:
First install the hardware used to install the machine.

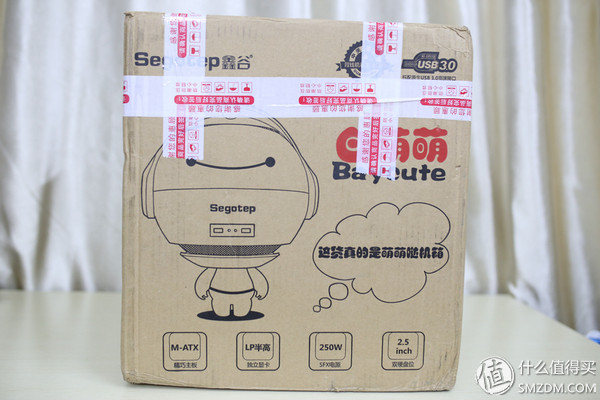

The pattern on the packaging of the chassis is very cute. From the packaging, this chassis can support M-ATX motherboards. It supports LP half-height graphics cards. It is designed with a 2.5 inch dual hard disk drive and comes with a 250W SFX power supply. .
Support M-ATX motherboard, note that this MATX is also limited to 22619cm
Open the chassis, you can see a lot of attachments, and even the instructions have changed to a "white Meng Meng Raiders Raiders."
The shape of the chassis should be based on the image of the white in the film "Super Marines", but wearing headphones.
The USB and audio interfaces in the chassis are better if they are designed to be hidden. Another USB 2.0 USB 3.0 configuration seems not so sincere, is it better to have two USB 3.0 high-speed interfaces?
The details of the chassis. . . Workmanship, some of the interface's position is relatively rough, but look at the appearance of so adorable, I endure, I hope the manufacturers pay attention to it.
White wears headphones. It is actually a design of a handle. It is estimated to be easy to carry, and it also plays a fixed role.
The enclosure of the chassis is made of plastic material, which should take into account the plastic's strong plasticity. To open the case, you need to remove the "headphone" first.
The internal layout of the chassis.
Chassis comes with power, in order to save space, many mini chassis are now using a dedicated power supply, power is 250W.
With this ITX small box, or a little worried about the heat problem, or replace the dual heat pipe Jiuzhou Fengshen Ice MINI double-edged version is more insurance, double blade means two fans, more than the standard version, heat Efficiency has also improved.
The silicone grease has already been painted at the factory, and it is surely more uniform than my "Nine point grease coating method."
Kingston's HypepX memory is stable and has good compatibility. Red vests add a lot of color to the product, and it also improves the memory cooling effect. This article has been with me for two years, and now I give it to the little princess, and she can fight for another three years.
The hard disk is a Kingston UV400 SSD, thanks to the application of SLC Cache technology, this SSD's running score is still very good
This box can only support 2.5 hard drives, so first on a 240G SSD, there is a need to add 1T laptop hard drive (said that the desktop has never been a laptop hard drive, feeling strange.)
Installed:
SSD installation position hidden on motherboard backplane
The SSD-specific mounting position is hidden behind the back of the motherboard bracket. When the installation process is relatively more, it is not very convenient.
Although it is a Mini chassis, the design of the traces is unambiguous. Through the routing holes on the chassis, better management, wiring, and routing can be performed.
After the installation, the cabling effect is displayed, and the interior of the chassis is neat and tidy.
Now that you have installed the Mini-ITX motherboard, you will see a blank space.
After the back cover of the chassis is installed, you can hide the power and only the main board can be seen.
The princess's room did not pull the cable, and the nephew asked me how to do it. It was not simple, and the wireless network card would solve the problem. To install this, it was more like a robot.
The power button on the chassis is black. After turning on the power button, a light blue light will appear around the black keys, which is very beautiful.
On the side of the chassis, like the earphone headset, there will be a white LED light.
The appearance of this chassis is indeed very unique, full of personality. Put it there, I really can't see it as a chassis.
Benchmarks:
The processor chose Intel's Pentium G3220, without a separate graphics card.
Before the hard disk was introduced, it was a Kingston UV400 240G SSD.
Although not equipped with a separate graphics card, but to the princess to learn what the Internet, relying on Pentium G3220's performance is acceptable.
Next, do a simple test on the Kingston UV400 240G SSD.
1942913ac1f38564570b45312cd829d.jpg" />
CrystalDiskMark: read 464.6MB/S, write 436.8MB/S
AS SSD Benchmark is a software designed specifically for SSD testing. You can test the continuous read and write performance of the SSD, including the transfer performance of 4KB small files. From the test results, the UV400 240G SSD score is still very good, 4K score can be accepted, this is mainly due to SLC Cache technology, the optimization of the SSD is better.
4K HD:
Then test the effect of playing 4K HD video. After the hardware acceleration is enabled, you can see that although the occupancy rate of 4K HD to the CPU is quite high, the maximum is about 70%, and it plays very smoothly.
In the end, we did a test on the whole machine. We can see that the heat dissipation of this chassis is very good. The temperature of the AIDA64 pager CPU is up to 53 degrees.
A Mengda computer has been installed, isn't it cute?
Advantages: Relative to the "black and white" of the traditional chassis, for children, this should have a certain attraction, cute and adorable, and the cooling effect is also good. To set up an Internet learning machine for children or consumers who like cartoon images. It is a good choice.
Improvement: There is only one USB 3.0 high-speed interface, which is not very reasonable. It is recommended to use two more suitable devices. Only 2.5 SSDs or notebook hard disks can be installed in the storage. Pay attention to the time of purchase. It's a rough comparison. This needs to be improved.
