In the data line, we promised everyone's charger guides and finally met with everyone.
A clean sweep: Apple's data line annual purchase guide revised (2017-01-14 23:18:32): Supplementary missing articles have been published, improve the data comparison chart, add Apple Andrews combo wire test. A friend in need can click on my avatar to find or search the "Apple Data Line Guide". Thank you. Additional amendments (2016-12-26 20:24:50): Article comments are more concentrated on a few issues and then say something: Only sampled a non-MFI wire, because of the non-certified good students | Like 1k Comments 1k Collection 6k see details Takes one month to cover 30 chargers and more than 50 sets of test data
If you are using an iPhone, it is enough to buy a charger to read this, it should be the most detailed apple charger article in the entire network.
The article involves more long brands, friends in need can collect first, thank you all
â–¼ We recommend using the directory function on the phone and PC to quickly find chapters
â–¼ Some chargers participating in the test took off the mirror and then we started
This article confronts the masses and the sisters who read my article.
The article is as concise and clear as possible, so that everyone can understand it is my responsibility
Join the "Good Health Theory" at each session and teach you the big words in the hands. I also hope you’ll like it with your hands, thank you.
也许 Maybe you really need to buy a charger
Our iPhones and iPads come with chargers.
â–¼ Original charger for iPhone, output 5V/1A, official price 149
â–¼ iPad 9.7-inch original charger, output 5V/2A
The official no sale, the market price of about 80 yuan
If you don’t understand the sister, just remember the numbers in 1A and 2A.
Many consumers are dissatisfied with the iPhone, and many of them are focused on not supporting fast charging and charging too slowly.
With the gradual increase of the iPhone battery capacity, the full charger speed of 3 hours is no longer sufficient.
We also talked about before, Plus and iPhone7 is to support 2A charging
To put it simply, you can charge your iPhone with an iPad charger.
â–¼ Some friends are worried about the compatibility of the two. Here, first attach a chat record of friends and official website technical consultants.
Compression may not look very clear, the effect is that the technical consultant made it clear that the iPhone is no problem using this charger, he himself is also used
â–¼ Then we look at Apple's official website description of this charger is full equipment support, you can click here to jump to the query
Official website only 12W in the sale, iPad original 10W charger and 12W compatibility is also consistent
To know that charging with the official 12W charger, Plus and 7 generations are 2A 10W charging.
Simply put, the mobile phone will control the current input of the charger, and this doubt can be rest assured.
To sum up, the iPhone models that currently support 10W charging are as follows
â–¼ The iPad comes standard with 2A charger, but actually supports 2.4A, 12W charging specification
â–¼ Before the students said that 6 and 6s also support 10W charging, this time I also tested the full time
Except for the initial period of charging, it will rise to 1.3A for a short time, and the remaining time will be below 1A. The difference between full time and original use is not significant.
Model: iPhone 6s off 10W charger, test equipment: EBD USB+ original data cable
A set of charging time-consuming comparison
Power is charged from 20% off, test equipment: EBD USB+ original data cable
â–¼ 10W Charger Increases the Charge of the iPhone 7 and 6Plus by 40-50 Minutes, and the iPad Increases 33 Minutes After Using the 12W Charger
Streamlined article took off the graph, the students can leave a message
As the pace of life becomes faster and faster, charging becomes more and more fragmented.
The meaning of fast charging is not entirely to reduce the overall charging time by how many minutes, but in the short-term high-frequency charging time, to give a higher conversion ratio
iPhone users envy the Android camp fast charge at the same time, through the replacement of the charger, but also can significantly reduce the charging time, although the iPhone's 2A charging strictly speaking can not be considered fast charge.
Plus many places need to be charged, the original one charger is not enough, so buying a charger seems to be our required course
OK, the basic knowledge is over, back to buy buy
As mentioned earlier, there is no problem with the iPhone iPad charger, but the iPad 10W charger is not sold, and the third-party sellers are mixed.
Buying an official 12W charger, the price of the 149 is more expensive, and the iPad is less wasteful.
Don’t forget what it’s worth to buy, spend small money to do big things, or spend the same money to do bigger things is our aim
Some third-party chargers that are cheap enough and worth enough are equally worthwhile to choose. We will officially begin to help you save money and teach you to buy.
æ£æ–‡ Text:
Apple chargers available on the market, we can carry out simple classification according to single-port, dual-port, multi-wall charging, multi-table charging.
Since charging is a process in which the current is constantly changing, this time is different from the data line test.
I spent a little more time doing a 20-minute charge test for all my mouth and mouth, and the data was more intuitive and effective.
At the same time we should pay attention to the warranty time, the same as the charger and data cable, the basic are only for repair
☺ Single port charger:
In addition to fast charging, the usual output of the single port on the market is 5V/2A, 10W, the data is consistent with the Apple iPad charger
The price is less than the fraction of the official chargers sold
iPad original chargerâ–¼ Corner design for easy storage. It took a year or so and there was a slight problem with the locking when opening the fold
Power: 5V/2A 10W, National Apple Store Warranty for one year
â–¼ removable
â–¼ Used with the official Global Travel Converter Kit
â–¼ 20 minutes charge test, device for iPhone7, original data line
Charged at 560mAh (milliampere-hours) with an average voltage of 5.08V
The peak current is 1.87A, and the current is less than 1.8A in less than one minute
Put on the graph to make it easier for some students to watch the data. You don't need to look directly at the charging time.
ZMI single port charger:Millet ecological chain produced
ZMI 10W fast charging 5V/2A charger/charger/adapter purple rice AP511 for Apple Android phone flat white 29 yuan Jingdong direct link
Power: 5V/2A 10W, Warranty: 12 months
â–¼ Appearance is a boxy design, pins are not foldable, and it is slightly inconvenient to carry
â–¼ Before Jingdong engaged in activities to buy for the family, they did not tear the protective film when they got it back a few days ago.
Speaking more, the charger will have a fever problem, the protective film remember to tear off
â–¼ Connect to iPad to identify Apple 5V/2.1A mode
Power: 5.1V/2.1A, 10W
â–¼ iPhone7 with 20% power
Power: 5.2V/2A 10W, full speed output
â–¼ Output 2.1A exceeds calibration and runs for a step
Stepping test: can be simply understood as the maximum output of the test charger
Maximum output 5.2V/2.2A
â–¼ 20 minutes charge test
Charged 588mAh, average voltage 5.19V
The peak current is about 1.875A, and the first 7 minutes is maintained above 1.8A.
ZMI single port charger summary:
Supports Apple device identification, maximum 2.2A output, 20 minutes test exceeds Apple 10W charger
iPhone7, Plus can achieve 10W full speed output, 5s, 6s, etc. are also suitable for purchase
Yu Bo single port charger:
Yu Bo (Yoobao) 2a charging head quick charger head phone universal Apple Andrews Samsung usb plug iPhone 6s Y-72125 yuan Jingdong direct link Yu Bo should be more focused on the line, so the package is relatively large, showcase style
Output: 5V/2.1A, Warranty: 3 months
â–¼ The overall shape is relatively rounded, the pins are not folded
â–¼ Power 5V/2.1A
â–¼ Successfully identify Apple devices, access iPad, 50% power
Power: 4.7V/2.2A 10W, slightly lower voltage
â–¼ access iPhone7, power 20%
Power: 5.3V/2A 10W, full speed output
â–¼ step test, maximum output 5.2V/2.2A, consistent with ZMI
â–¼ 20 minutes charge test
Charge 612mAh, average voltage 5.28V
The peak current is about 1.91A, which is maintained above 1.8A for the first 16 minutes
Supports Apple device identification, maximum output 2.2A, 20 minutes test exceeds iPad original charger
2A devices such as iPhone7, Plus can be output at full speed of 10W, 5s, 6s and other devices can also be purchased
â–¼ Three single-port comparisons, Yu Bo and ZMI are smaller than Apple's 10W charger, Yu Bo than ZMI's bigger
â–¼ Work Status Comparison
â–¼ Compared with the original chargers we are most familiar with, it is not much bigger and the output is doubled.
There are not many options available for a single price on the market. Many manufacturers are now more focused on dual ports. It is recommended that you consider dual ports as a priority when purchasing.
Really want to buy a single mouth, the above two chargers can be purchased, the full range of the iPhone can be full speed output
ZMI Warranty 12 months, Yu Bo only 3 months
â–¼ The 20-minute test data is compared as follows
Both ZMI and Yubo exceeded the iPad charger and Yubo achieved more than 610mAh. Although the 20-minute data gap is not large, it will be amplified during the entire charging process, resulting in the final full-time gap.
☺ Dual port charger:
Most of the time, we need to charge more than just a mobile phone at the same time. It may be a mobile phone + tablet, or you and your family's mobile phone.
With the iterative upgrade of digital products around the corner, Bluetooth headsets, mice, keyboards and other common devices also need to be charged frequently.
Especially Bluetooth headsets are basically charged every day. Although these are low-current devices, if they are single-port chargers, these devices cannot be charged simultaneously with the phone.
If you have a mobile power source, the charger is
Therefore, the convenience brought by the dual port charger is self-evident. Suggest that if you want to buy a new charger, give priority to double-port, which is why many manufacturers focus on dual-port.
Dual Port Charger, which mainly tests whether to recognize Apple's protocol, 20-minute charge, and dual-port output current.
â–¼ Millet Dual Charger
Millet MI millet USB charger (2 ports) 49 yuan Jingdong direct link The photo of the product printed on the package is slightly different from the others
Output: dual port maximum 5V/3.6A 18W, Warranty: 12 months
â–¼ Simple design, positive without any logos and logos
â–¼ Collapsible pin design, opening and closing more smoothly
â–¼ Connect iPad, identify Apple 2.4A mode
Single output 5.4V/2.41A, full speed output, good performance
Here to mention, millet this charger is to support QC3.0
Connected to the QC3.0 mobile power supply successfully identified, output 7V/2A, as MIX, about 15W output
â–¼ But another port access device will automatically switch back to 2A output mode
â–¼ Simultaneous access to iPhone 7 and iPad
iPad is 5V/2.25A, iPhone7 is 4.9V/1.54A
The total output is about 3.7A. Although slightly over-calibrated, iPhone 7 cannot output at full speed at this time.
â–¼ iPad+1A mobile power (assuming this is a 1A charging 6s)
iPad came to 5.3V/2.4A full-speed output, mobile power is only 0.85A, failed to output at full speed
â–¼ iPhone7+1A mobile power
iPhone 5.35V/1.87A, like mobile power, basic full speed output
â–¼ 20 minutes charge test
Charge 610mAh, average voltage 5.35V
The voltage is very stable, the peak current is about 1.86A, and the whole process can basically maintain above 1.8A, and the performance is excellent.
Design and workmanship are good, support for Apple recognition, pure single-port output support QC3.0 protocol (for iPhone + QC mobile power users)
Single-port access iPad or full-line iPhone can be full-speed output, 49 yuan good value for money
Dual port maximum output of about 3.7A, over calibration, suitable for 1A mobile phone + tablet / 2A+1A mobile phone or low current device / 1A mobile phone * 2
Note: 2A mobile phone refers to iPhone7, Plus and other 2A mobile phone charging, 1A mobile phone refers to 6,6s and other 1A mobile phone, low current device means Bluetooth headset, mouse, etc.
CRDC dual port charger:
CRDC Apple charger head 5V2.4A folding plug iphone6s 7 ipad Android phone charging head 35 yuan Lynx featured direct link Actually, Aukey's domestic brands
â–¼ Compact packaging
Dual port total output 2.4A, Warranty: 18 months new
â–¼ I still like this shape, it is very small, people send nickname "sparrow"
â–¼ Collapsible Pins
â–¼ The design is a little mean, the bottom of the pin has a concave treatment, it will save some effort when unplugged
â–¼ Connect to iPad to successfully identify Apple devices
Power: 5.17V/2.31A, basic full speed output
â–¼ access iPhone7, power 20%
Power: 5.1V/2A 10W, full speed output

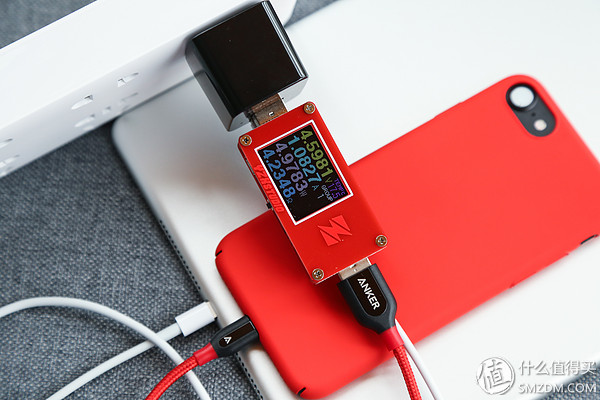

â–¼ Simultaneous access to iPhone7+iPad
iPhone7 output drops to 4.5V/1.1A
iPad output is 4.6V/1.14A
â–¼ Simultaneous access to iPhone7+1A mobile power (assuming 1s charging for 6s
iPhone7 output is 4.7V/1.46A
Mobile power output is 4.63V/0.92A
â–¼ 20 minutes charge test
Charge 595mAh, average voltage 5.15V
The peak current is about 1.87A, and the first 8 minutes are maintained above 1.8A.
â–¼ I have also used this charger for a while, when the output is full, it is slightly warmer
Fever caused by the outer protective film blistering, here to everyone as a negative teaching material, the new charger remember tear film
Compact, inexpensive, easy to carry
Single-port output iPhone full-line and iPad can be full-speed output
Dual-port 2.4A output is basically in line with the calibration, suitable for 2A mobile phone + low current device / 1A mobile phone * 2 / 1A mobile phone + non-mobile phone tablet device
Note: 2A mobile phone refers to iPhone7, Plus and other 2A mobile phone charging, 1A mobile phone refers to 6,6s and other 1A mobile phone, low current device refers to Bluetooth headset, mouse, etc.
ROCK 2.1A dual port charge:
ROCK T2 Mobile Phone Charger Dual Travel Charger Applicable to Apple Samsung Millet Huawei Mobile Phone White 23.9 Yuan Jingdong Direct Link Tucao, this seal is too difficult to open
Dual port total output: 5V/2.1A, Warranty: 12 months
â–¼ Similar to the original charger, the pins are not collapsible
â–¼ Like the above Yu Bo, the recognition is Apple 2.4A mode
Step-down to 4.7V, output 2.22A
â–¼ access iPhone7, power 20%
Output is 5.42V/1.99A 10W, full speed output
Impression ROCK charger's universal voltage is relatively high
Because only 2.1A input, not test iPhone + iPad
â–¼ Access iPhone7 and 1A mobile power (assuming 1s charging for 6s)
iPhone7 output is 4.65V/1.31A
Mobile power supply 4.6V/0.89A, failed to achieve 1A full speed output
The total output of the dual port is about 2.2A
â–¼ 20 minutes charge test
Charge 580mAh, average voltage 5.4V
The graph shows that 5-14 minutes are maintained above 1.8A.
Small size, easy to carry, cheap
Supports apple recognition, only iPhone output can be full-speed output
Dual-port output 2.2A at the same time, slightly lower power
Suitable for 2A mobile phone + low current device / 1A mobile phone * 2 or low current device
Note: 2A mobile phone refers to iPhone7, Plus and other 2A mobile phone charging, 1A mobile phone refers to 6,6s and other 1A mobile phone, low current device refers to Bluetooth headset, mouse, etc.
ROCK 2.4A Dual Charger:
Rock (ROCK) Mobile Phone Charger Dual Travel Charger for Apple Samsung Millet Huawei Mobile Black 45 Yuan Jingdong Direct Link Dual port total output 2.4A, Warranty: 12 months
â–¼ Another small charger large package should also be focused on the line
The official name is "Tank", except that the 2.4A output and the tank do not seem to touch
â–¼ The protective film on the surface is more casual
â–¼ Dual-port intelligent identification
â–¼ Pin foldable design, smoothness
â–¼ Connect to iPad to successfully identify Apple devices
Power: 5.1V/2.4A 12W full speed output
â–¼ Simultaneous access to iPhone 7 and iPad
iPhone7 output: 4.56V/1A
iPad book: 4.68V/1.55A
â–¼ 20 minutes charge test
Charged 545mAh, average voltage 5.06V
â–¼ Just this chaos seems to be a general order, and the tests are all mobile phone off states, so there is no background software impact
â–¼ Take a photo of the test and turn it off like other chargers
ROCK 2.4A Dual Charger Review:
Four-way design is small, supports apple recognition
Single-port iPhone full-line and iPad can be full-speed output
Dual-port maximum output of about 2.5A, the charging curve is very unstable, so ROCK this is not recommended
Anker dual port charger old models:
Anker 2-port USB Apple phone charger / multi-port charger / charging head / USB power adapter dual-port 4.8A fast charge for Apple Android phone flat white 59 yuan portable port fast charge Jingdong direct link View Encyclopedia Double output maximum output 4.8A 24W, Warranty: 18 months
▼ This charger has been sold for a long time, and now there is also a new product replacement, so let’s call this “older†for the time being.
â–¼ Support Power IQ Intelligent Recognition
â–¼ The front panel is not pure white, slightly yellowed
â–¼ Collapsible pin design
â–¼ Connect to iPad to successfully identify Apple devices
iPad power: 5.19V/2.43A 12W, full speed output, good performance
Warranty: 18 months new
Because the dual-port 4.8A output is powerful enough, we directly access the iPhone + iPad test
â–¼ Simultaneous access to iPhone 7 and iPad
iPhone7 power: 5.21V/2A 10W, 2A full speed output
â–¼ iPad, 5.19V/2.32A 12W, full speed output
â–¼ 20 minutes charge test
Charge 618mAh, average voltage 5.23V
The peak current is close to 1.9A. The first 17 minutes are basically maintained above 1.8A.
Anker 4.8A Dual Charger Review:
Good workmanship, support for apple recognition, powerful power
Whether it is a single port or a dual port, iPhone and iPad can be full-speed output, up to two iPad full-speed output at the same time
59 yuan price high price, 18 months warranty replacement
Suitable for 2A mobile phone *2 / iPad * 2 / 2A mobile phone + iPad and all other combinations
Note: 2A mobile phone refers to iPhone7, Plus and other 2A mobile phone charging, 1A mobile phone refers to 6,6s and other 1A mobile phone, low current device refers to Bluetooth headset, mouse, etc.
Anker 4.8A Dual Charger New:
bd0608bb242.jpg" /> Anker New 24W USB Charger/Multiport Charger/Rechargeable Plug for Apple Android Phone White 108 Yuan Jingdong Direct Link Dual port total output: 5V/4.8A 24W, Warranty: 18 months new
â–¼ Compared to the old models above, the material and design have been replaced
â–¼ Added power indicator to support Power IQ intelligent identification
â–¼ Pin foldable design, more rounded than the old models
â–¼ Connect to iPad to successfully identify Apple devices
iPad power: 5.18V/2.43A 12W, full speed output, basically the same as the old model
Simultaneous access to iPhone 7 and iPad
â–¼ iPhone7 power: 5.2V/2A 10W, 2A full speed output
â–¼ iPad power: 5.17V/2.32A 12W, full speed output
â–¼ 20 minutes charge test
Charge 611mAh, average voltage 5.19V
The peak current is about 1.87A, and it stays above 1.8A for the first 15 minutes
Anker 4.8A double mouth comment:
Single or dual port, iPhone and iPad can output at full speed
20 minutes charge slightly lower than the old models, 18 months warranty
In addition to the replacement of design and materials, the interior should also be changed. There is no way to dismantle the reasons for this space.
The price is 59 yuan more expensive than the old one, the appearance and feel will be better, adding the power indicator
Suitable for 2A mobile phone *2 / iPad * 2 / 2A mobile phone + iPad and all other combinations
Note: 2A mobile phone refers to iPhone7, Plus and other 2A mobile phone charging, 1A mobile phone refers to 6,6s and other 1A mobile phone, low current device refers to Bluetooth headset, mouse, etc.
Momish dual port charger:
MOMAX Dual USB White Charger/ Charging Head Dual USB Multiport Charger Mobile Phone Tablet iPad Universal Black 59 Yuan Jingdong Direct Link Dual output maximum output 5V/2.4A 10W, Warranty: 12 months
â–¼ Black appearance is not uniform on the front, there are some raised small particles
â–¼ Dual-port intelligent identification
â–¼ Collapsible pin design, the bottom end is inwardly recessed, it is relatively easy to pull out
â–¼ Connect to iPad to successfully identify Apple devices
iPad power: 5.1V/2.4A 12W, full speed output
â–¼ Simultaneous access to iPhone 7 and 1A mobile power
iPhone7 output is 4.8V/1.55A, mobile power is 5.04/1A full speed
â–¼ 20 minutes charge test
Charge 576mAh, average voltage 5.12V
Peak current 1.83A, except for the first half minutes, the rest is below 1.8A
Momish 2.4A double mouth comment:
Small size, workmanship needs improvement, support for apple recognition
Single-port output, iPhone full system and iPad can be full speed
The maximum output of two ports at the same time is about 2.55A, slightly over-calibrated
Suitable for 2A mobile phone + low current device / 1A mobile phone *2
Note: 2A mobile phone refers to iPhone7, Plus and other 2A mobile phone charging, 1A mobile phone refers to 6,6s and other 1A mobile phone, low current device refers to Bluetooth headset, mouse, etc.
Meizu dual port charger:
Meizu (MEIZU) Dual Travel Charger Standard Edition White 69 Yuan Jingdong direct link Dual port maximum output: 5V/3.4A, Warranty: 12 months
â–¼ Packaging is very special, wake up goal note 2.4A
â–¼ Turn up the design
â–¼ Minimalist design with no logo on the side
â–¼ There is a power indicator on the front, it looks very refined, there is a small and beautiful style before Meizu
â–¼ Collapsible pin design
â–¼ But the way to open the pins I really want to Tucao
Different from others, Meizu’s need to buckle the position behind the pin to open
Open the effort, after the opening is obviously a stagnation, people who are relatively short nails may also be suffering
Although it looks good, it seems that it is more for design and poor practicality.
â–¼ Connect to iPad to successfully identify Apple devices
iPad output: 5V/2.4A 12W full speed output
â–¼ Simultaneous access to iPhone 7 and iPad
iPhone7 output: 4.87V/1.51A
iPad output: 5.04V/2.3A
â–¼ 20 minutes charge test
Charge 555mAh, average voltage 5.05V
Meizu dual mouth charger comment:
Workmanship and appearance are good, adding a status light, but the pin open more laborious
Supports Apple recognition, iPhone full-line and iPad can output at full speed
Double output maximum about 3.8A
Suitable for 1A phone + iPad / 2A+1A phone / 1A phone * 2 / iPad or 2A phone + low current device
Note: 2A mobile phone refers to iPhone7, Plus and other 2A mobile phone charging, 1A mobile phone refers to 6,6s and other 1A mobile phone, low current device refers to Bluetooth headset, mouse, etc.
Bull anti-charge dual charger:As a traditional old socket manufacturer, now also involved in the accessories industry
Bull (BULL) U212T automatic anti-overcharge plug / automatic power off charger / dual port USB2.4A dual output 65 yuan Jingdong direct link Dual-port maximum output: 5V/2.4A 12W, Warranty: 12 months
â–¼ Small package, marked with "Quick Charger"
â–¼ There are two independent keys at the top to control the switches of two USB ports respectively
Both charging ports support full automatic power off
â–¼ Pin foldable design
â–¼ Connect to iPad to successfully identify Apple devices
iPad output: 5.16V/2.43A 12W full speed output
â–¼ Access iPhone7
Output: 5.19V.2A 10W, full speed output
â–¼ Simultaneous access to iPhone 7 and 1A mobile power
iPhone power is 4.9V/1.79A
â–¼ The mobile power is 4.98V/0.93A
â–¼ 20 minutes charge test
Charge 600mAh, average voltage 5.16V
Bull anti-overcharge charger comment:
Both shape and workmanship can be, dual mouth full automatic power off, suitable for people who care about this aspect, such as this is my father-in-law is in use
Supports Apple recognition, iPhone full-line or iPad can be full-speed output
Dual output about 2.7A, best performance in the 2.4A charger
Suitable for 2A mobile phone + low current device / iPad + low current device / iPad + low current device / 1A phone * 2
Note: 2A mobile phone refers to iPhone7, Plus and other 2A mobile phone charging, 1A mobile phone refers to 6,6s and other 1A mobile phone, low current device means Bluetooth headset, mouse, etc.
â–¼ We can often see this kind of charger with current marked on each port
This is not self-sustaining automatic recognition as tested above, but requires us to manually select the current
Such as iPad plug 2.4A, 6s plug 1A interface
Aside from the technical aspect, it is not very good from a single point of view.
For the user, you first need to know the current needed by your device, then look at the logo on the charger, and finally plug in to charge
The cost of using the entire process is slightly higher, so we try to avoid these when we choose
Below we test this charger
Product wins dual port charger: â–¼ This hand has been bought for a long time, the maximum output is only 2A
â–¼ now sells a maximum output of 2.4A, but the essence is the same
Product wins iPad Charger 2.4A Dual USB Phone / Tablet / Mobile Power Charger / Dual Port / Two Chargers (without data cable) Apple White 36.9 yuan Jingdong direct link â–¼ 1A interface, 2A interface
â–¼ Pin fold design
â–¼ 1A interface to iPhone7
5V/0.98A, 4.9W
â–¼ 2A interface access iPhone7, recognize Apple 2.1A mode
5.12V/1.74A 9W, fail to output at full speed
â–¼ 2A interface to iPad
5.13/V2A 10W, same as original charger
â–¼ Simultaneously access 1A mobile power and iPad
iPad output dropped to 4.5V/1.2A, lower voltage, the total output of the dual port should be around 2.1A
This type of charger is cumbersome to use and has not been made available to users. It is not recommended.
When you buy, pay attention to look, even if the ad page that the phone tablet at the same time fast charge do not trust
Usually the maximum output of the dual port is only 2A-2.4A, it is unable to charge both devices at the same time.
Let’s take a look at the working status of the above 10 plug-ins
â–¼ 2.4A Group
Momish, ROCK, CRDC
â–¼ Both ROCK and CRDC have power status lights
ROCK is blue, CRDC is white
â–¼ High contrast
â–¼ Compare with original charger
The size is acceptable and not much larger than the original, CRDC's shape and size are the most satisfactory individuals
â–¼ Compare 2A with other 2.4A
â–¼ 3A and above
Xiaomi and Meizu, rivals in mobile phone business came to the accessories industry
Meizu is a little bigger than Xiaomi
â–¼ Compared with iPad charger, the volume is not much
â–¼ Anker 4.8A new and old models contrast
â–¼ Only the Meizu and Anker models have power status lights. Anker will turn green when connected to the device.
Moderate brightness, lampshades are matte finish, there will be no obvious light pollution at night
â–¼ Yan value representative team, Xiaomi, Meizu, Anker new
â–¼ These three paragraphs should be the best seen in the survey
Compared with the single port, the dual port is closer to the real-life use scene. This is also the reason why the double port is the focus of this article.
The above 10 dual-port chargers all support Apple device recognition
When using a single port, no matter if it is an iPhone or an iPad, it can basically output at full speed.
When using the dual port, it is recommended that you choose 2.4A or more as far as possible, the difference between the price and 2A is very small, you can also iPad full speed.
According to the different combinations of their own devices, choose the right charger
Unit: mAh
Single port dual port charger review:
13 chargers, feather Bo single mouth, millet mouth, Anker dual mouth old and new models, bull double mouth, 20 minutes test results have exceeded 600mAh
ROCK dual mouth and Meizu dual performance slightly worse
In terms of warranty, Yu Bo is the shortest for only three months, CRDC and Anker are the longest 18 months
Most of the third-party charger's performance exceeds the iPad charger, more than twice the original charger, the price is much cheaper than the original
☺ Multi-port charger:
There are more and more electronic devices around us. In our lives, we often encounter situations where multiple devices need to be charged at the same time.
For example, Kindles, selfie sticks, mobile power, and even cameras that support USB charging, etc.
At this time we need to choose a multi-port charger to meet the needs, you can also call multi-port wall plug
Millet 4-port charger:
Millet 4-Port USB Charger Mobile Phone Tablet Multiport Charger Fast Charge Plug Lightweight Portable 69 Yuan Millet Safe and Reliable 4-Port USB Charger Tmall Select Direct Links View Encyclopedia Warranty 12 months
â–¼ For the first time in the past, I feel very young
â–¼ Four USB output
â–¼ Pins are collapsible
â–¼ Maximum output 5V/7A, single port maximum output 2.4A
â–¼ full load working status, no power indicator
Because the number of multiple ports is not large, the test part is left behind
Anker 4-port charger:
Anker 40W4 USB multi-port charger plug direct charge iPhone iPad mobile phone tablet smart fast charge 198 yuan Lynx featured direct link Warranty: 18 months
â–¼ Same design as dual port
â–¼ 4-port output with power indicator
â–¼ Maximum output 5/8A, single port maximum output 2.4A
â–¼ Full load working status
The indicator light stays blue and turns green after starting work
Momax Momis 4 Port USB Charger 25W Universal Mobile Charger Smart Multi Interface Charger Head 168 Yuan Lynx Select Direct Link Warranty: 12 months
â–¼ Mousse's multi-mouth and table chargers have made this cow head design
â–¼ is actually a removable silicone sleeve, 4-port output
â–¼ Two cow heads can be simply used as a thread catcher
â–¼ Pins are not foldable and it is not convenient to carry them
â–¼ Maximum output 5V/5A, single port maximum output 2.4A
â–¼ full load working status, no power indicator
Mami with a bull's head is obviously much bigger than Xiaomi Anker.
â–¼ The difference between the three planes is not very large
â–¼ Momish is a little higher than the other two
Mainly test the full load output of three chargers
â–¼ Test equipment is as follows
One each for iPhone7, iPad, 2A, 1A mobile power
This combination can use 2A or 1A mobile power as a 2A or 1A mobile phone, which fits our device configuration for traveling with family members.
iPhone7 power 20%, iPad power 40%
â–¼ Millet 4-port charger test
iPad: Full speed output of 5.12V/2.4A 12W
iPhone7: 4.98V/1.72A, 8.6W
â–¼ Look at the situation of two mobile power supplies
Both 2A and 1A input mobile power supply maintains full-speed output
4 ports total output is 7.12A, slightly over calibrated
Except for iPhone7, all other devices maintain full-speed output
â–¼ Anker 4-port charger test
iPad: 5.04V/2.38A, 12W full speed output
iPhone7: 4.79V/1.95A, 9.36W Near Full Speed ​​Output
â–¼ Both mobile power supplies are full speed output
â–¼ It seems that I have not yet reached the limit of this charger. I replaced the 1A mobile power supply with a 2A mobile power supply.
iPhone7 is 5.1V/1.8A, 9.2W
2A full speed mobile power output
Look again at the iPad and another 2A power supply
iPad: 4.97W/2.17V, 11W
2A full speed output
4 ports maximum output 8A, in line with the calibration
General test 4 devices are basically full speed and perform well
â–¼ Momis 4 port charger test:
Same device combination access, iPhone7 output is 4.8V/1.62A, 7.85W
æ‘© The maximum output of Momish is 5A, with an average of 4 ports, and only 1.25A is available per port
Just finished a photo of the above, iPhone7 interface has appeared on the charging, power off the strobe status
After removing a 1A power supply, the iPhone 7 is 4.79V/1.92A.
No longer continue testing, the maximum output of 4 ports 5A, daily multi-device use is not enough
Multi-port charger can be a good solution to multi-device charging problems. It is also a good choice to put one on the bedside.
When purchasing, pay attention to the total output and the maximum output of the single port, which is a hard indicator of multi-port charger
All three tests supported Apple recognition. Xiaomi and Anker were used by me. Momishi was a friend.
The total output of millet 5V/7A was tested and calibrated.
Although not fully occupied by the test equipment group, the price/performance ratio is still high.
The total output of the Anker5V/8A has been rated as powerful, and the test results are also in line with the calibration.
The price is the most expensive, the power is also the highest, and only this one has a power indicator. If you have requirements on the output, buy it.
The output of the Momish 5V/5A is the lowest among these three models.
Price 169, the main selling point should be the shape, the size of the pin is too large to be folded, it is not convenient to carry out.
☺ Two in one charger:
Two in one charger, which is a combination of mobile power + charger
Go out or travel, often need to bring a charger and mobile power
This product is a good solution to this problem, go out with a device on it
There are two models in the market, the super-charged fighter and Anker.
Both products do not support QC fast charge, so the most suitable group is Apple users.
Product wins power tyrants five generations own plug mobile power / charging treasure 10000 milliamperes white applies to apple/samsung/Huawei/millet mobile phone/tablet etc 99 yuan Jingdong direct link Capacity: 10000 mAh, maximum output: 5V/2A, Warranty: 12 months
â–¼ The volume is still relatively large, after all, there is 1W mAh capacity
Below are 4 power indicators
â–¼ comes with a folding pin, plug in the socket is the charger, unplug the mobile power
â–¼ There is also a Micro Usb interface, which can be charged directly via the data cable
â–¼ USB socket at the bottom of the fuselage, personally feel that the design will be better to the side
Anker PowerCore Fusion Super Charger + Charging Po 2 in 1 Fast Charge Mobile Power 168 Yuan Lynx Select Direct Link When the capacity is 5000 mAh, the maximum power of the portable power supply is 3A, and the maximum capacity of the charger is 2.1A.
Directly put old photos of previous evaluations, let me steal lazy
â–¼ The front of a physical button + power indicator
â–¼ comes with a folding pin, plug in the charger, unplug the mobile power
â–¼ All interfaces are on the front, 2 USB outputs, a Micro USB input
After watching it out, we then test it
Access iPhone7, 20% power, original data cable
Power fighter and super charge are all mobile power modes
â–¼ Electric tyrant: 4.9V/1.68A 8.29W, failed to output at full speed
▼ Super Charge: 5.04V/1.98A 10W, Full Speed ​​Output
Access iPad 9.7, 50% power
â–¼ Electric tyrant: 4.87V/2A 9.6W, the voltage is lower than 5V, only less than 10W output
â–¼ Super Charge: 5V/2.31A 11.685W, Close to 12W Full Speed
Access CRDC charger to charge, cable for the bull 2 ​​in 1 data line
â–¼ Electric tyrant: 5.18V/1.72A, 8.95W
â–¼ Super Charge: 5.18V/1.77A, 9.21W
In the above actual test, the electric tyrant can't fully charge the iPhone 7 and iPad (2A protocol)
Ultra-charging single-port maximum output of 3A, iPhone7 and iPad have achieved full speed output
Look at the stepping test
Stepping test: can be simply understood as the maximum output of the test charger
â–¼ Electric tyrants are not plugged in mobile power mode
The maximum effective output: 4.81V/2.2A, 10.6W
â–¼ Ultra-charging unplugged mobile power mode
The maximum effective output: 4.99/3.2A, 16W
â–¼ Electric Bass Plug Charger Mode
The maximum effective output: 4.99V/1.7A, 8.5W
â–¼ Super Charger Charger Mode
The maximum effective output: 5.05V/2.3A, 11.6W
â–¼ Insert a row
Electric tyrants are long strips, so they are more than a few rows
â–¼ electric tyrant inserts the socket
â–¼ The bottom 4 green lights
â–¼ The USB port is at the bottom, some locations are not convenient, and the side will be better
â–¼ Super charge plug into the socket
â–¼ The keys and lights are on the side, and the output is on the front
â–¼ Because of the relatively long length of power fighter, some specific locations will be more
â–¼ The USB port at the bottom still needs to be left in position to use even if the socket is inserted a bit higher
â–¼ Try to reverse the insertion, then there is no then
The two-in-one charger solves the problem that it is no longer necessary to bring a charger + mobile power
One device, two ways of using
We compare the weights
â–¼ Electric tyrant: 285g
â–¼ ZMI Single Port Charger +1W Milliampere Case Mobile Power
281g, 4g lighter than electricity tyrants
â–¼ Super Charge: 187g
â–¼ Millet Dual Charger + Plastic 5000 mAh Mobile Power
196g, 9g more than ultra-pole
This category of chargers, personally feel that is very handcuffed
The essence of the two-in-one charger or selling point is to make up for the electricity on the way to the business and charge the hotel at night.
One device to solve two problems
However, the product idea of ​​the company's electric tyrants seems to be out of this usage scenario. It is bulky and heavy, and even heavier than a metal 1W mobile power supply and a single-port charger. If it is replaced with a plastic mobile power supply, the gap will be even greater. It seems that there is no need to reduce the number to bring a product that increases weight.
Mobile power 2A, plug-in 1.7A and output of only one port, considered a short board
The super-charged output is much larger than the electric tyrant, the volume and capacity are relatively balanced, and the business trip is also more comfortable than the electric tyrant.
如果这两个产å“能综åˆä¸€ä¸‹ï¼ŒæŠ˜ä¸çš„容é‡ï¼ŒåŠ 入快充就会比较完美了
☺ æ¡Œé¢å……电器：
办公室或者家里，日常工作和打游æˆçš„时候
给手机充电以å‰æˆ‘们都是连接电脑，ä¸å¤ªæ–¹ä¾¿ä¸è¯´ï¼ŒåŠŸçŽ‡ä¹Ÿå¾—ä¸åˆ°ä¿è¯ï¼Œç¢°åˆ°éœ€è¦å¤šä¸ªè®¾å¤‡ä¸€èµ·å……电的时候，往往就会æ‰è¥Ÿè§è‚˜äº†
åŠ ä¸ŠiPhone并ä¸èƒ½åƒä¸‰æ˜Ÿä¸€æ ·æ”¯æŒæ— 线充电，所以桌é¢å……电一直ä¸å¤ªæ–¹ä¾¿
这个时候我们就å¯ä»¥è€ƒè™‘è´å…¥æ¡Œé¢å……电器æ¥è§£å†³ï¼Œè¿˜å¯ä»¥é¿å…线æ的凌乱问题
Momax摩米士智能多å£å……电器åŒé¢æ’5å£USB充电头手机平æ¿å¿«å……电器298元天猫精选直达链接总输出:5V/8A，å•å£æœ€å¤§è¾“出2.4A，质ä¿:18个月
â–½ ä¾ç„¶æ˜¯ç‰›å¤´çš„é€ åž‹ï¼Œå’Œå‰é¢çš„多å£å……ä¸€æ ·ï¼Œä¸€ä¸ªç¡…èƒ¶å¤–å£³+充电器的设计
â–½ 这个USBå£æœ‰ç‚¹æ„æ€ï¼Œå®˜æ–¹å«ã€Œ1-TAKEã€æŠ€æœ¯
就是支æŒUSBçš„æ£å差，这个的确是挺方便的
â–½ 电æºçº¿æŽ¥å£åœ¨åº•éƒ¨ï¼Œè®¾è®¡äº†æ–¹ä¾¿èµ°çº¿çš„牛头开槽
â–½ 但是电æºçº¿æ’入的时候，由于纵深ç¨å¤§ï¼Œæ‰€ä»¥å¹¶ä¸æ˜¯å¾ˆæ–¹ä¾¿
â–½ 硅胶表é¢çš„åˆæ¨¡çº¿è¿˜æ˜¯éžå¸¸æ˜Žæ˜¾çš„
â–½ 放在桌é¢ä¸Šè¿˜æŒºå¤§ä¸ªçš„，毕竟硅胶外壳也å 了ä¸å°‘ä½ç½®
â–½ 这个ä½ç½®å¯ä»¥æ¸…楚的看到，æ¯ä¸ªUSB接å£å†…部，都有一个弹片结构，用于支æŒæ£åæ’
â–½ 底部的电æºæŒ‡ç¤ºç¯ï¼Œå¾ˆå¾®å¼±ï¼Œå¤œæ™šä¸ä¼šæœ‰å…‰æ±¡æŸ“
功率测试：
â–½ 最近æ¬å®¶ï¼Œæ‰‹è¾¹åªæœ‰è¿™5个设备了，总输出9.4A
iPh
Pcb Spring Terminal Blocks,Plug-In Terminal Block Connector,Pcb Plug-In 6Pin Terminal Block,Pcb 5.0Mm Wiring Type Terminal Block
Shenzhen Hongyian Electronics Co., Ltd. , https://www.hongyiancon.com
